MANCHESTER, MANCHESTER BI-PHASE MARK and SPACE
	Link	Explanation
1	User's manual	Manchester/NRZ User's Manual. The Manchester decoder also supports Manchester Bi-phase Mark and Manchester Bi-phase Space
2	http://ckp.made-it.com/ encodingschemes.html	Link to a useful Web Page explaining various encoding schemes.
3	http://www.rhyshaden.com/ encoding.htm	Link to a useful Web Page explaining various encoding schemes.
4	http://en.wikipedia.org/wiki/ Biphase_mark_code	More details on Manchester versions.
5	http://en.wikipedia.org/wiki/ Line_code	An overview of Line Codes, to which Manchester and NRZ belong, but also i.e AMI, RZ, NRZi, 8b10b, MLT, etc.
6	Teledyne LeCroy Manchester D Data sheet and ordering information	Link to the Teledyne LeCroy Data sheet for the Manchester Decoder Option.
7	Teledyne LeCroy Manchester Decoder manual	Link to the Teledyne LeCroy Manual Instruction Manual for Manchester Decoder. The Manchester decoder also supports Manchester Bi-phase Mark and Manchester Bi-phase Space

Application Examples of MANCHESTER Decoder
	Image	Explanation

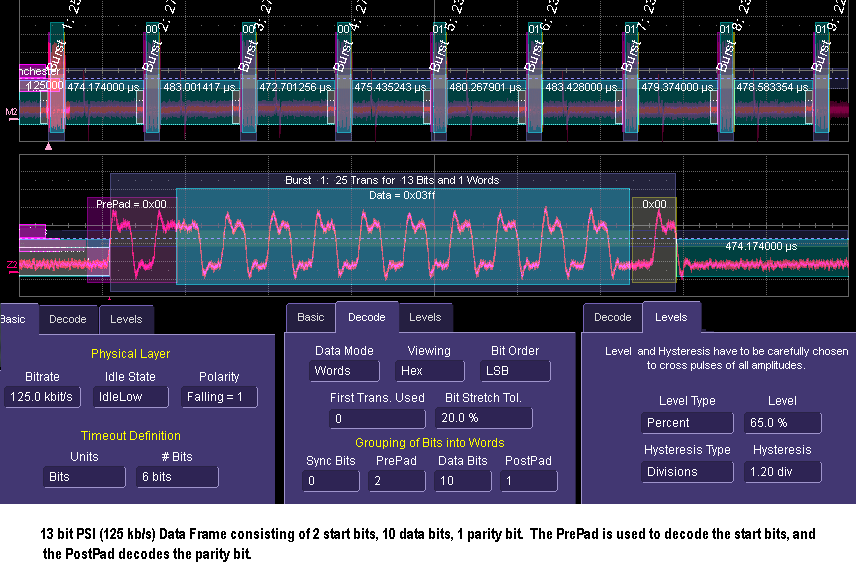

1	PSI5sensor125kbs_13bits_2start 10dataLsb_1Parity.trc PSI5sensor125kbs_13bits_2start 10dataLsb_1Parity.png	PSI5 Application. The raw data is in the TRC file. The PNG file shows both the decoded results (Rel 7.1) as well as the settings needed. By downloading the TRC file it is possible to load it into a memory and verify the decoding.

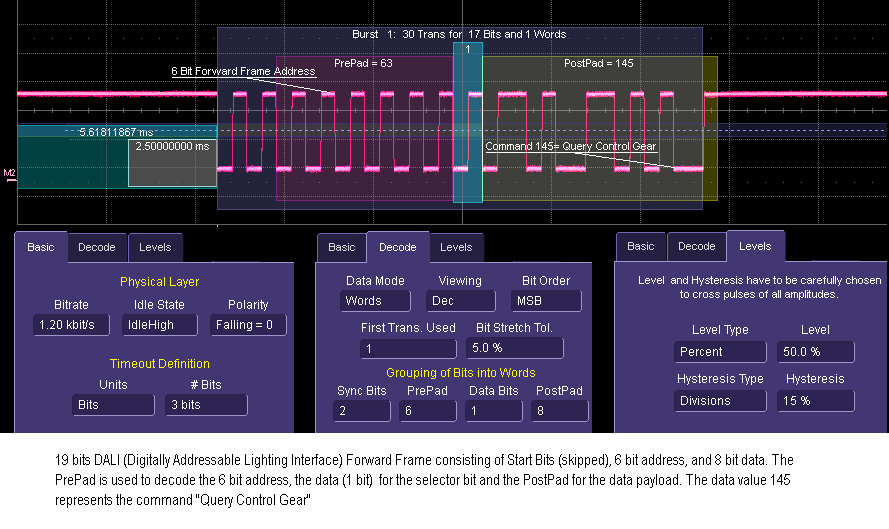

2	DALI_1.2kbs_ForwardFrame_Add63 Cmd145QueryControlGear.trc DALI_1.2kbs_ForwardFrame_Add63 Cmd145QueryControlGear.png	DALI Application. The raw data is in the TRC file. The PNG file shows both the decoded results (Rel 7.1) as well as the settings needed. By downloading the TRC file it is possible to load it into a memory and verify the decoding.

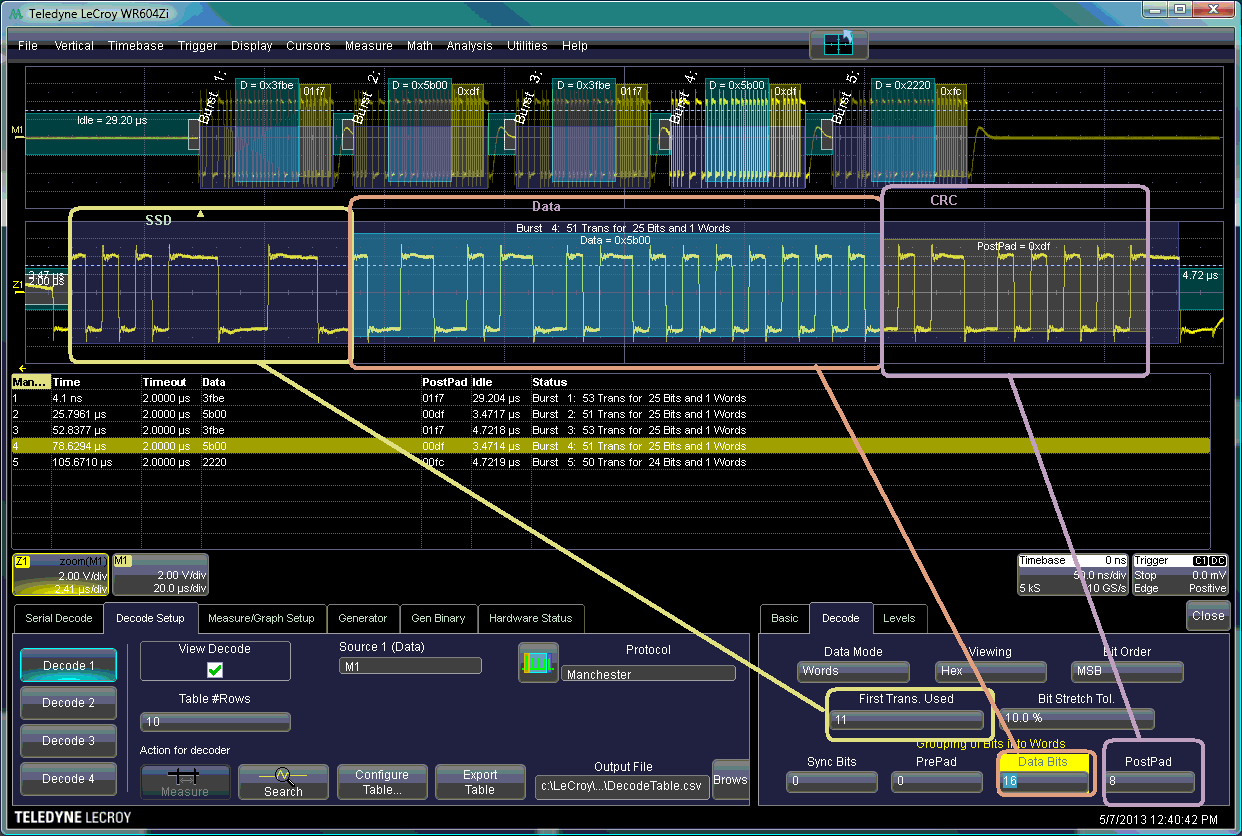

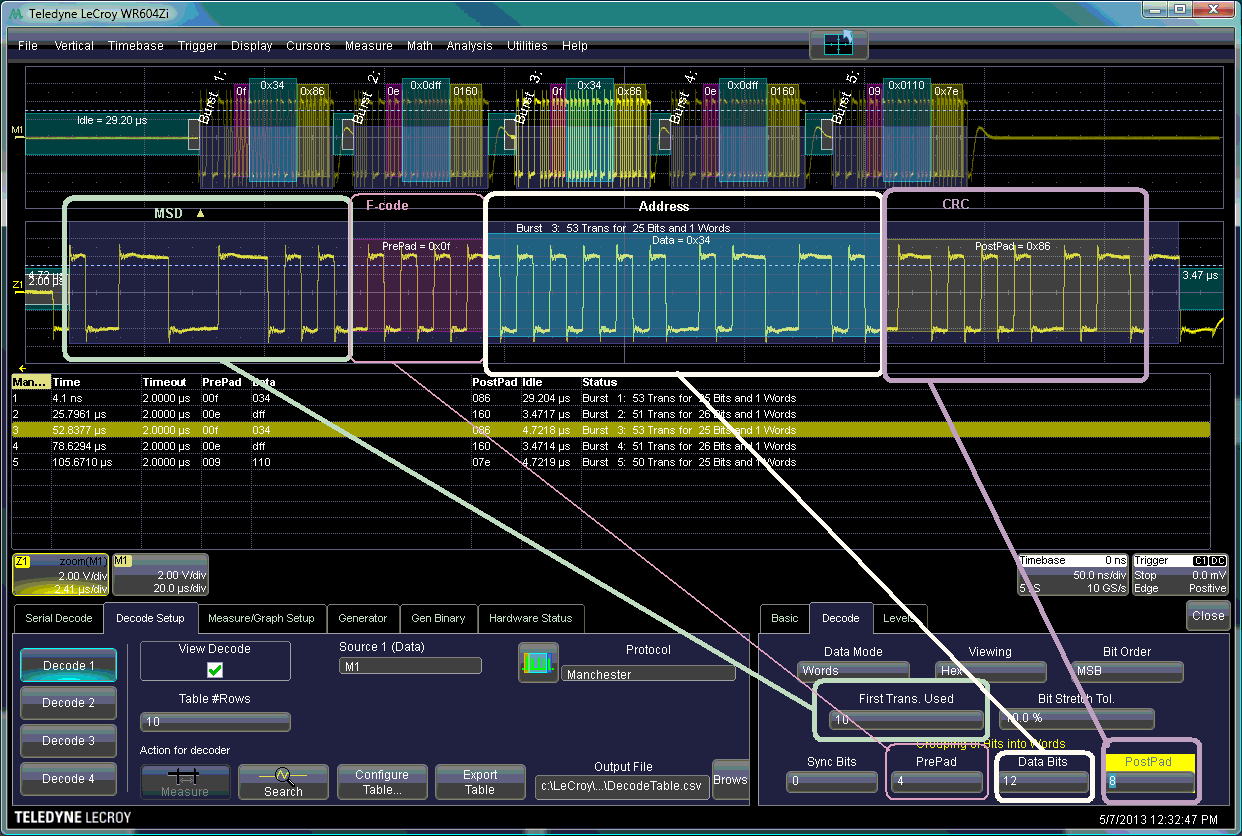

3	MVB_exemple_1.5MbPerSec.trc MVB_exemple1_MasterFrame.bmp MVB_exemple2_SlaveFrame.bmp	MVB Application at 1.5 Mb/s. The raw data is in the TRC file. The BMP files show the resulting decoded image for both a Master Frame and a Slave Frame. Note that different decoder settings need to be used for Master and Slave.

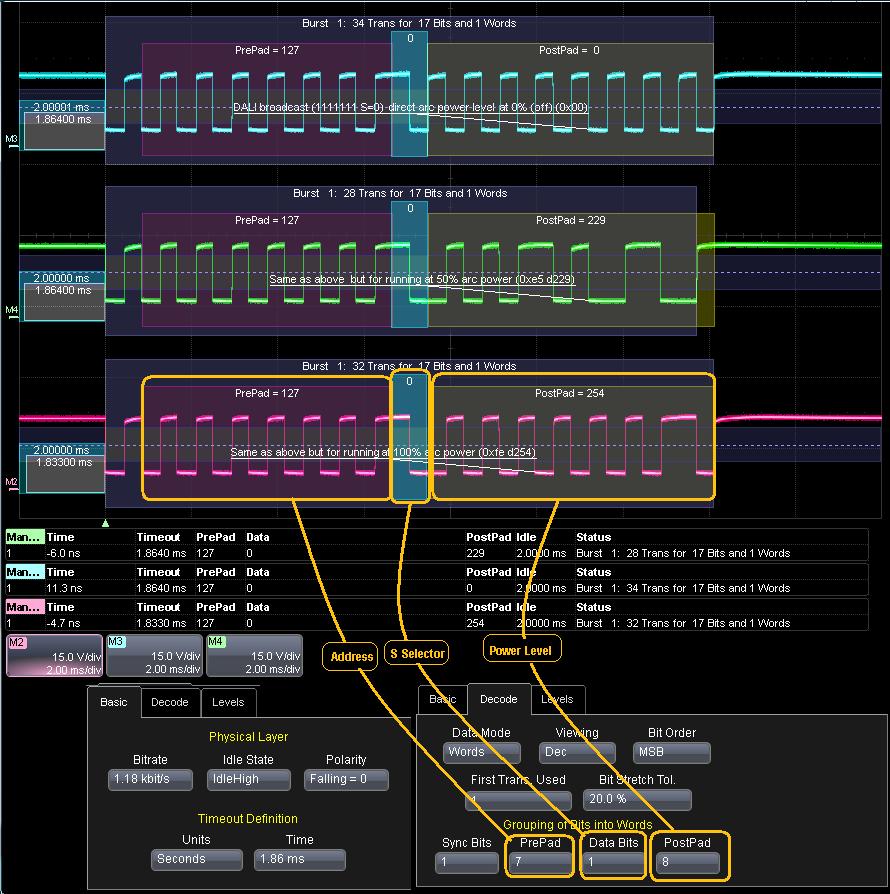

4	DALI_DirectArcPower_OFF.trc.trc DALI_DirectArcPower_50PCT.trc.trc DALI_DirectArcPower_100PCT.trc.trc DALI example of Decode Image	This second DALI example shows variations of the Direct Arc Power Command, in broadcast mode. The recorded files have been reloaded into 3 different memories. Then 3 independant decoders are used, with identical settings, to exemplify the 3 command variations one above each other.

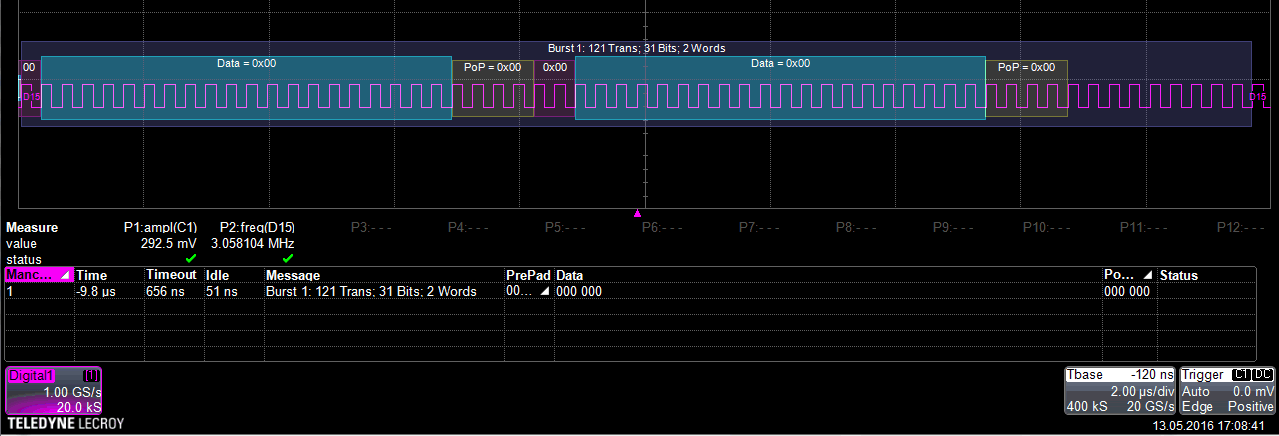

5	Manchester Digital Input Decode	This image shows a digital signal, decoded and annotated by the Manchester Decoder. There is no difference between decoding a digitally acquired signal with an analog signal, other then the look of the trace.
